ShoreMaster Boat Lifts
Verticalย -ย PWCย -ย Pontoon
Product Features:
- Dime-Welded Construction
- Exclusive Whisper Winch
- Double V-Side Design
- Corner Bracing for Added Stability and Strength
- All Stainless Steel and Brass Hardware
- Integrated or Add-on Motors Available for All Lifts
- Lift Sizes from 1200# Capacity to 7000# Capacity
- 1200# Capacity Lifts have a 50" Lift Rack Travel
- 2200# - 7000# Capacity Lifts have a 66" Lift Rack Travel
- Different Bunk Options for V-Hulls, Sailboats, and Pontoons
Standard Boat Lift Specs
| Model | Capacity | Lift Style | Inside Width | Lift Travel | Std Leg Length | Overall Width | Overall Length | Winch Model | Canopy Length |
|---|---|---|---|---|---|---|---|---|---|
| 1200 | 1200# | Cantilever | 64" | 28" | 24" | 72' | 80' | DL1202 | 13' |
| 1264 | 1200# | Vertical | 64" | 50" | 24" | 72' | 80' | DL1202 | 13' |
| 1296 | 1200# | Vertical | 96" | 50" | 24" | 104' | 108' | DL1202 | 21' |
| 2208 SSR |
2200 # | Vertical | 96" | 66" | 36" | 108" | 127" | 141 Whisper Winch | 21' |
| 3009 DVS | 3000# | Vertical | 108" | 66" | 36" | 120" | 127" | 141 Whisper Winch | 21'-27' |
| 3010 DVS | 3000# | Vertical | 120" | 66" | 36" | 132" | 127" | 141 Whisper Winch | 23'-33' |
| 4009 DVS | 4000# | Vertical | 108" | 66" | 36" | 120" | 127" | 2.0 Whisper Winch | 21'-27' |
| 4010 DVS | 4000# | Vertical | 120" | 66" | 36" | 132" | 127" | 2.0 Whisper Winch | 23'-33' |
| 5010 DVS | 5000# | Vertical | 120" | 66" | 36" | 132" | 127" | 2.0 Whisper Winch | 23'-33' |
| 6010 DVS | 6000# | Vertical | 120" | 66" | 36" | 132" | 127" | 2.0 Whisper Winch | 23'-33' |
| 7010 DVS | 7000# | Vertical | 120" | 68" | 36" | 132" | 127" | Integrated Motor | 23'-33' |

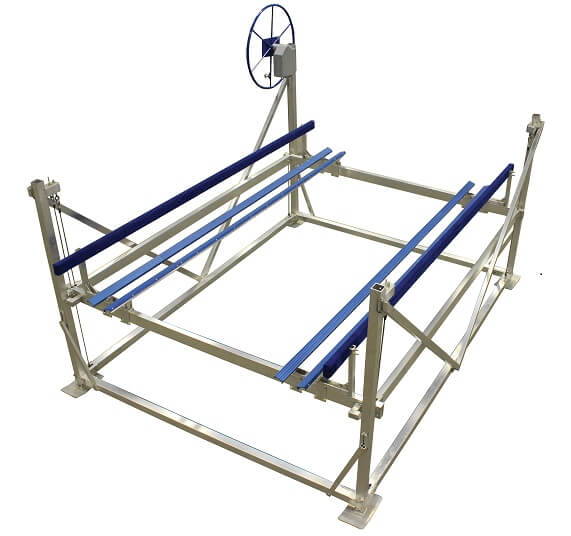

Specially Designed Pontoon Lifts
Product Features:
- Dime-Welded Construction
- Exclusive Whisper Winch
- Wider and Longer Frames
- Integrated or Add-on Motors Available
- Double V-Side Design
- Corner Bracing for Added Stability and Strength
- All Stainless Steel and Brass Hardware
- Pontoon Lift Sizes from 4000# Capacity to 7000# Capacity
- Lifts have a 66" Lift Rack Travel
- Ideal for Pontoons or Tri-Toons Longer than 26'
- Pontoon Bunk & Guide Assembly
Specially Designed Pontoon Lifts Specs
| Model | Capacity | Lift Style | Inside Width | Lift Travel | Std Leg Length | Overall Width | Overall Length | Winch Model | Canopy Length |
|---|---|---|---|---|---|---|---|---|---|
| 4010PTN | 4000# | Vertical | 120" | 66" | 36" | 132" | 162" | 2.0 Whisper Winch | 23'-33' |
| 5010PTN | 5500# | Vertical | 120" | 66" | 36" | 132" | 162" | 2.0 Whisper Winch | 23'-33' |
| 7011PTN | 7000# | Vertical | 132 | 66" | 36" | 144" | 216" | Integrated Motor | 27'-35' |

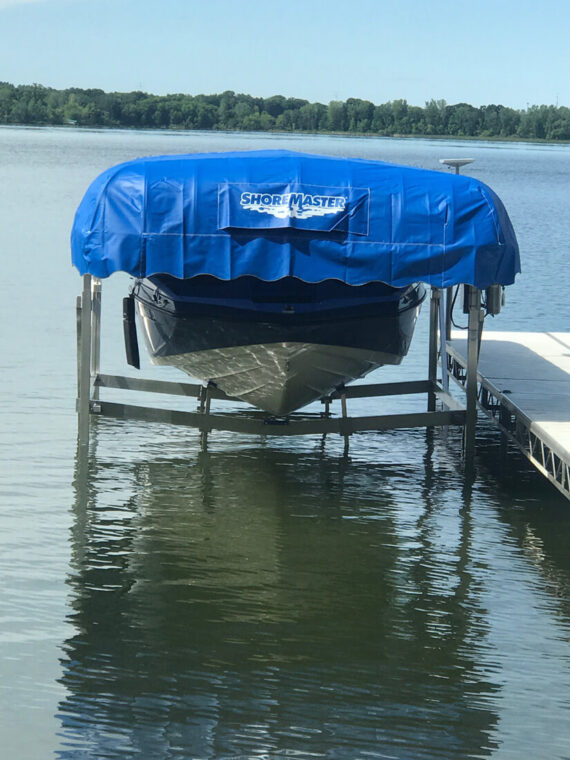

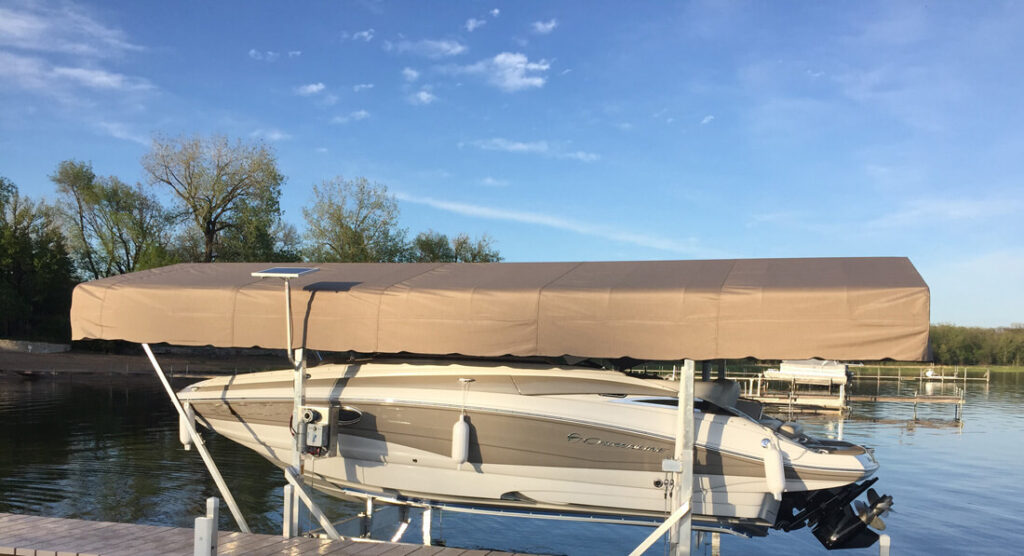

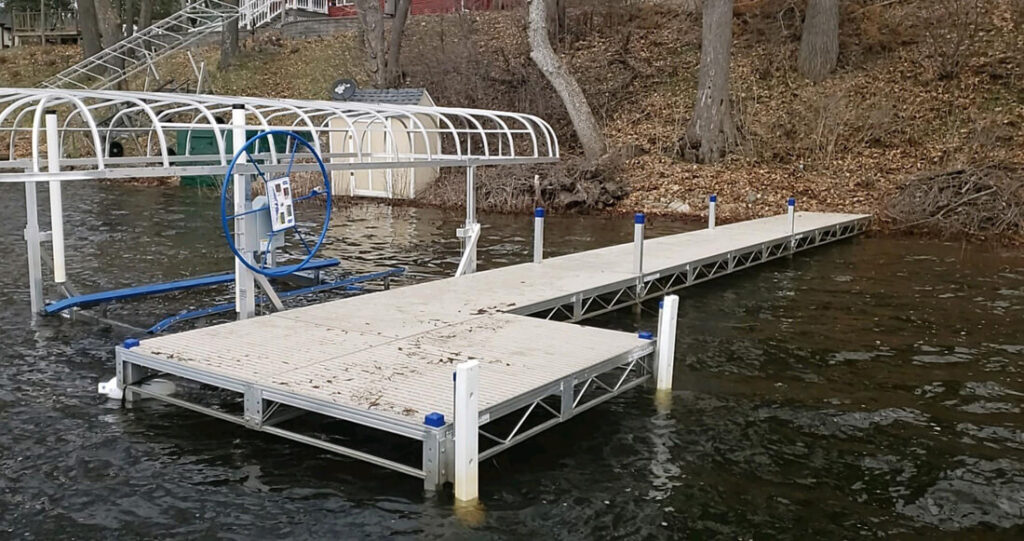

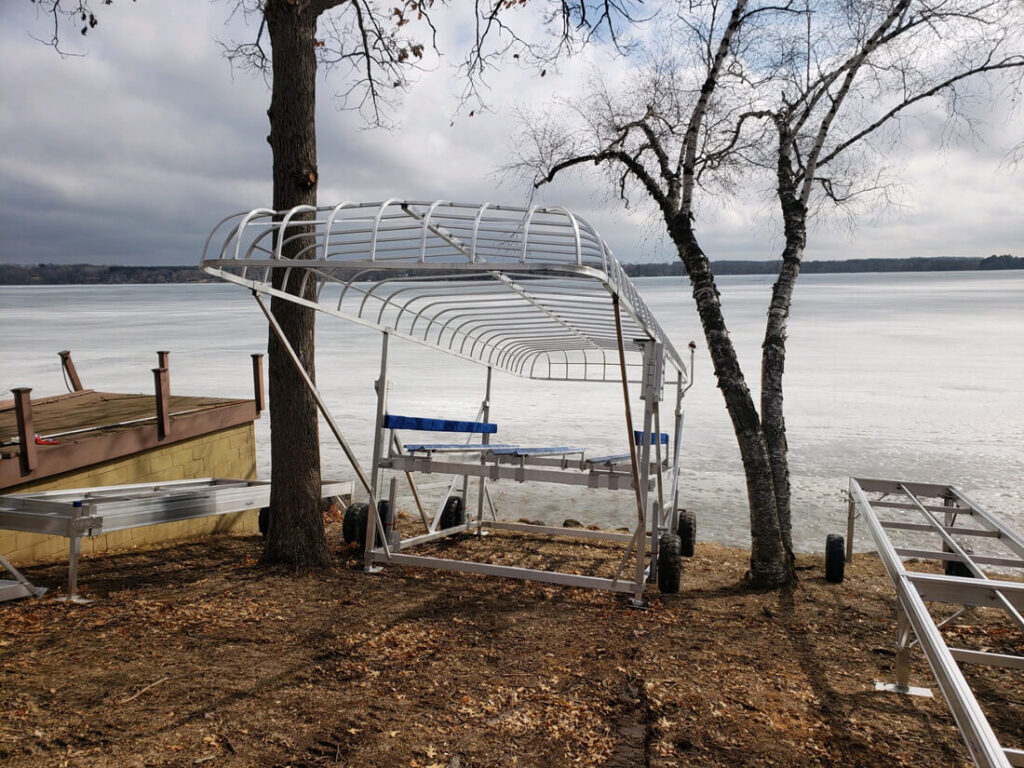

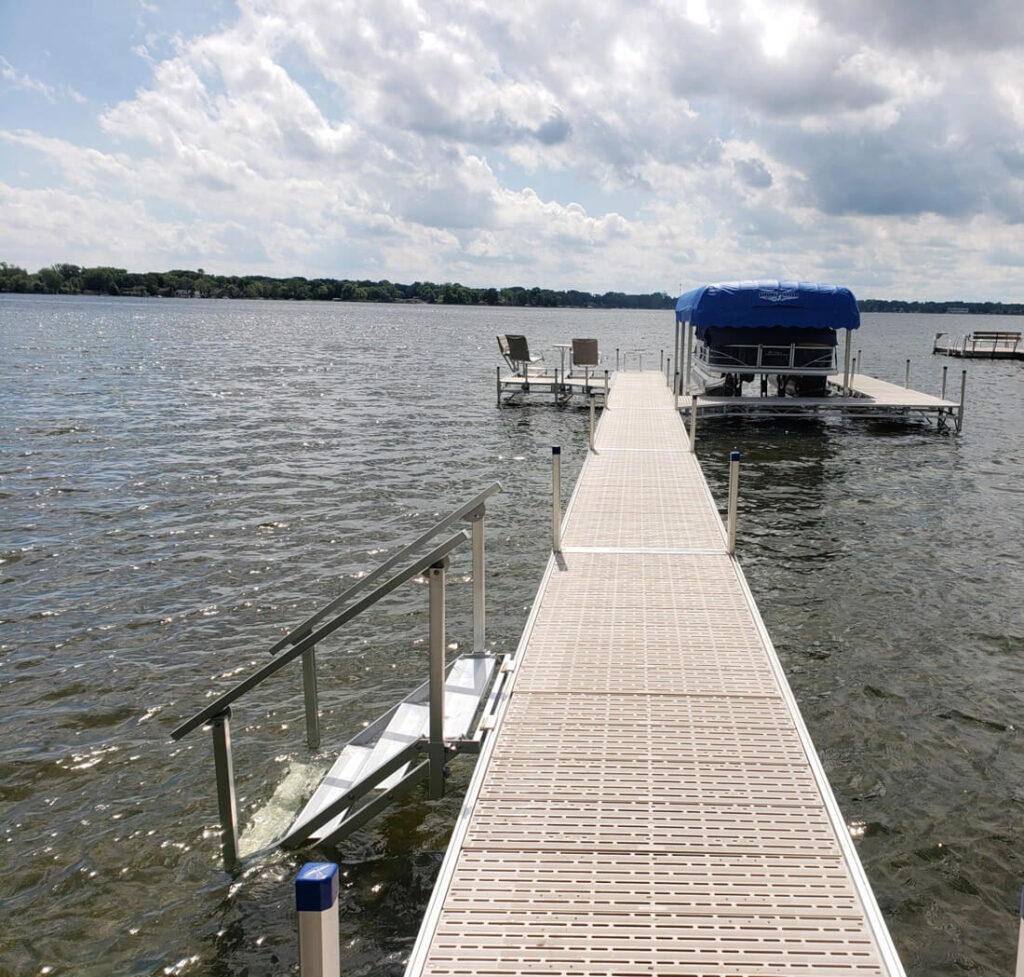

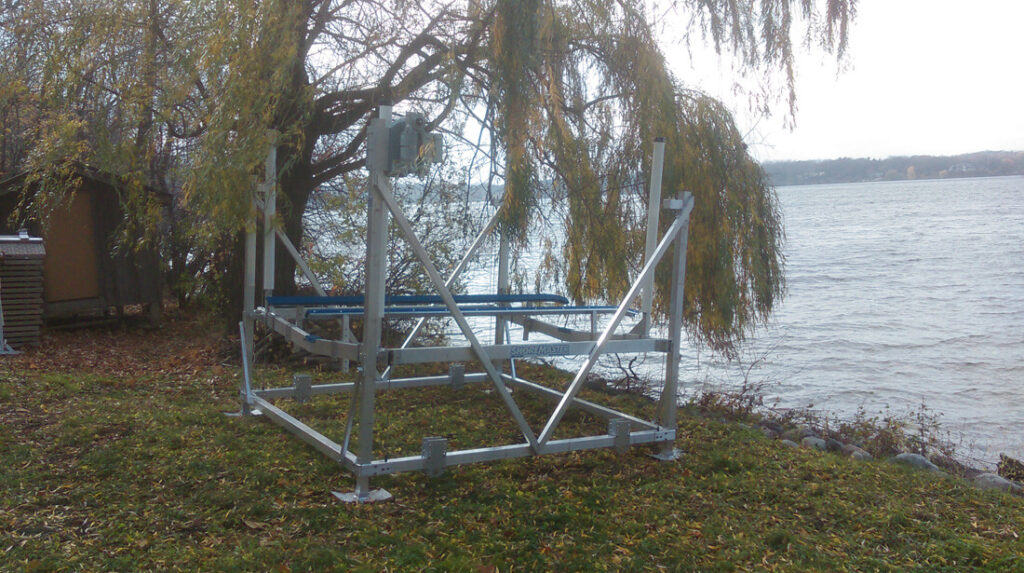

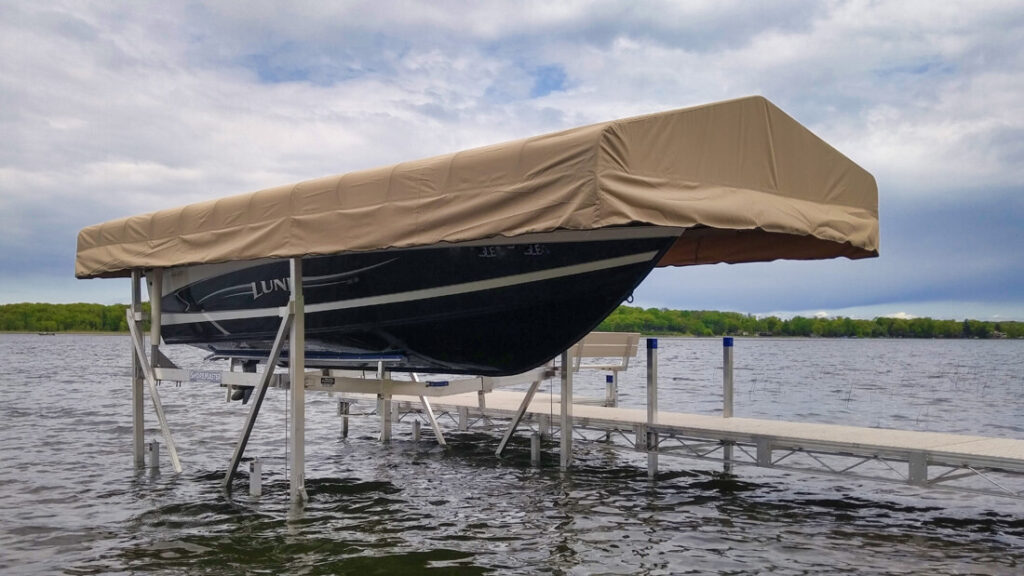

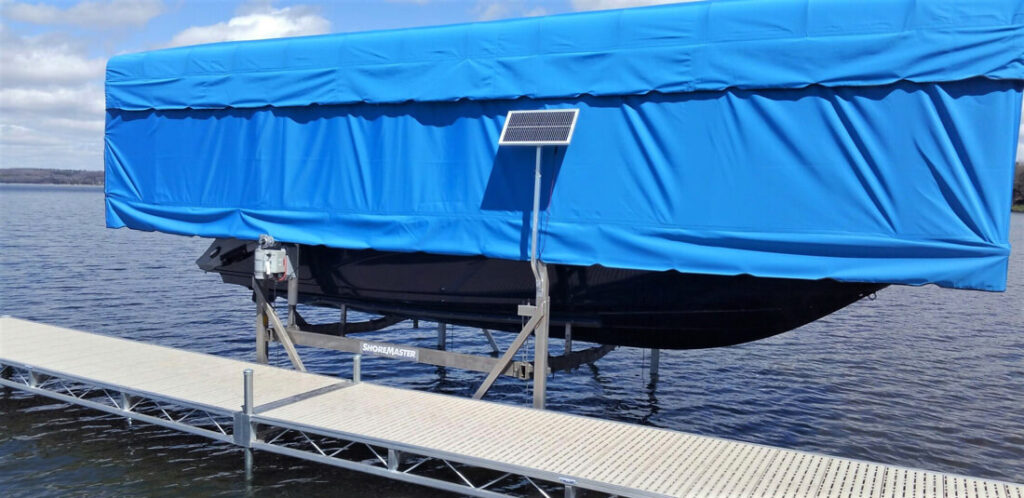

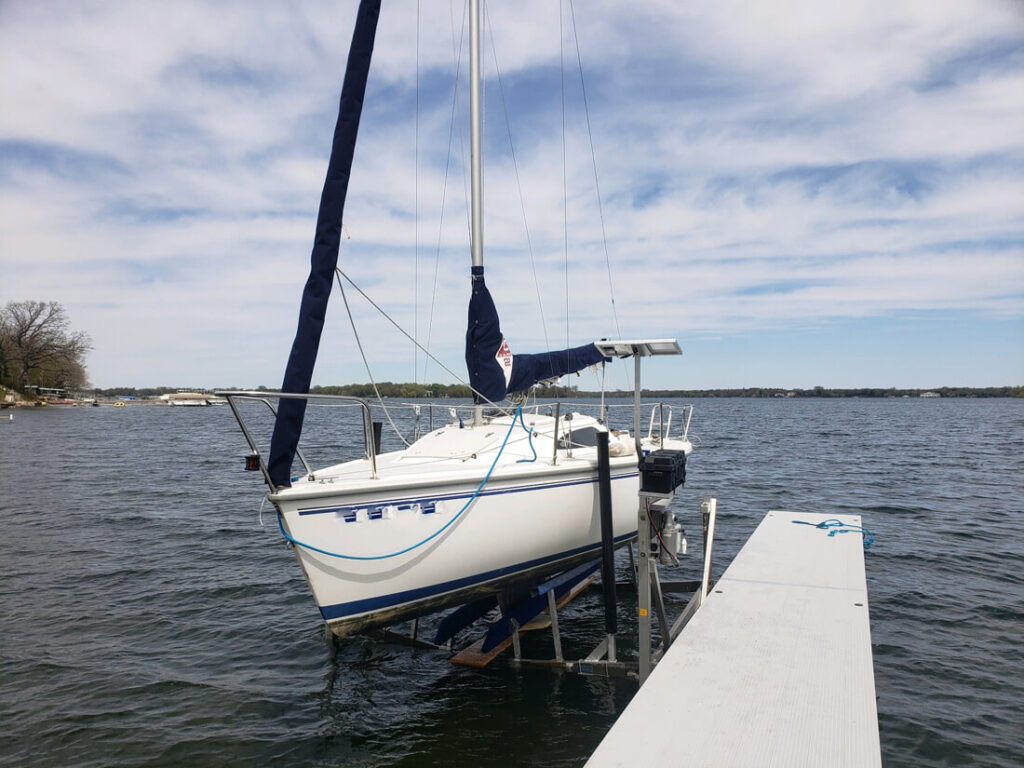

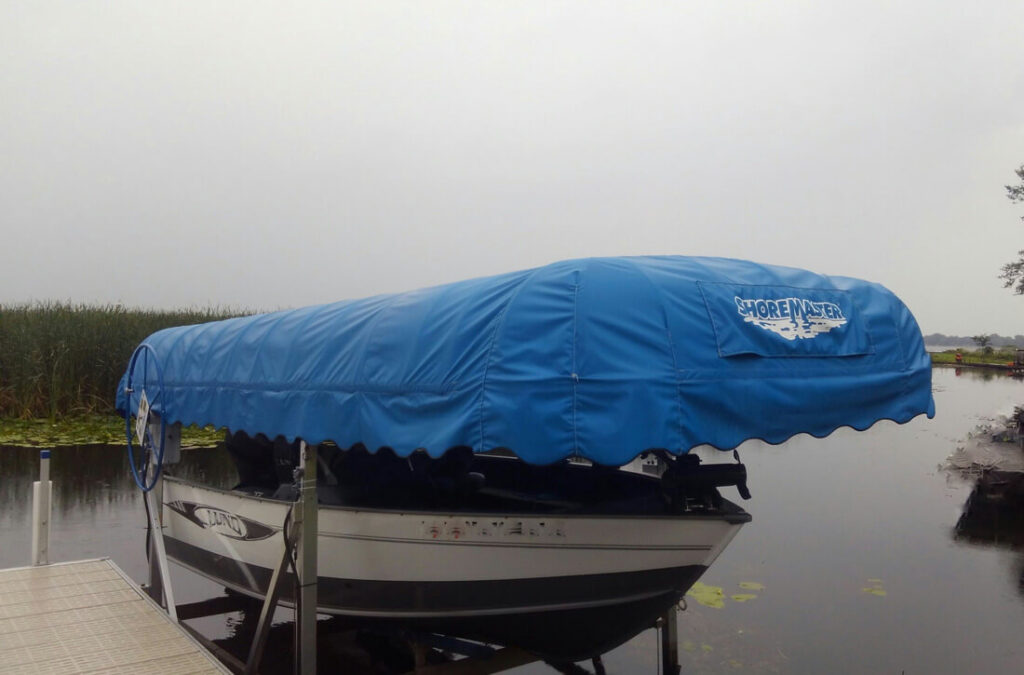

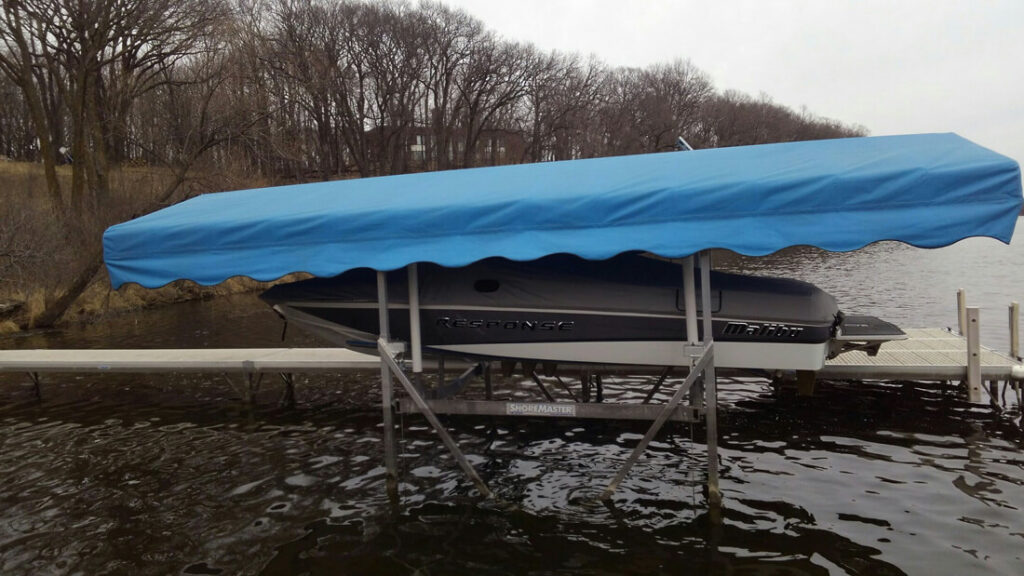

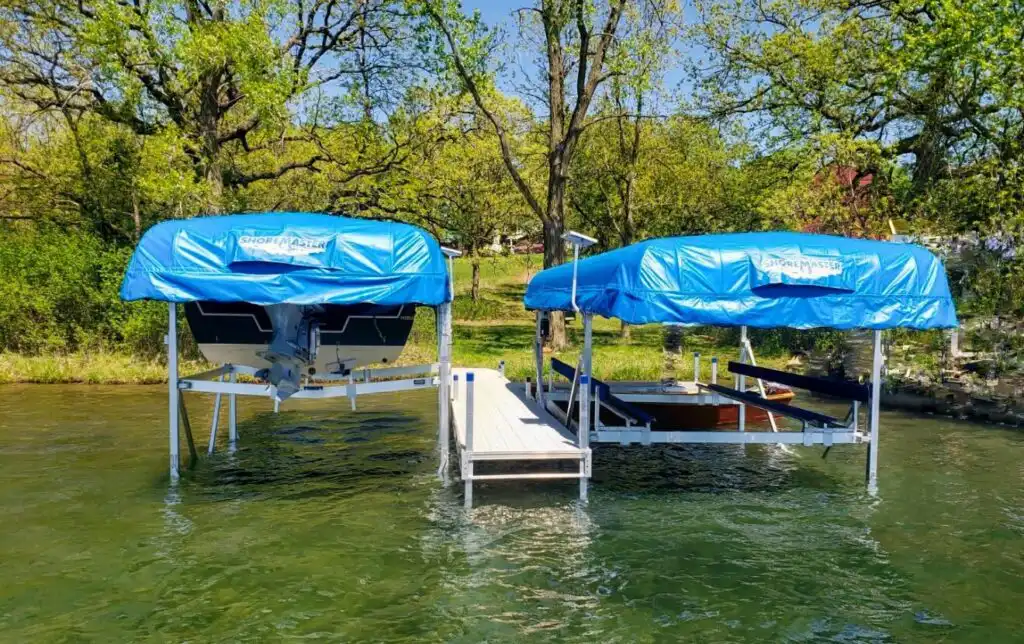

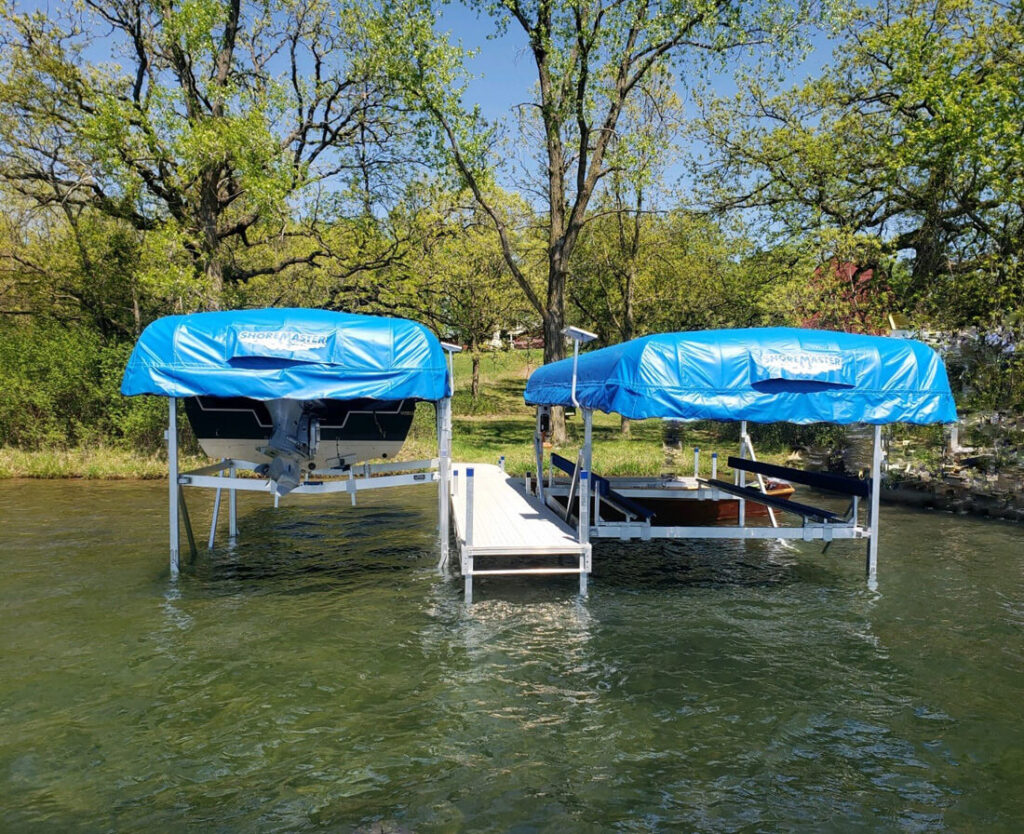

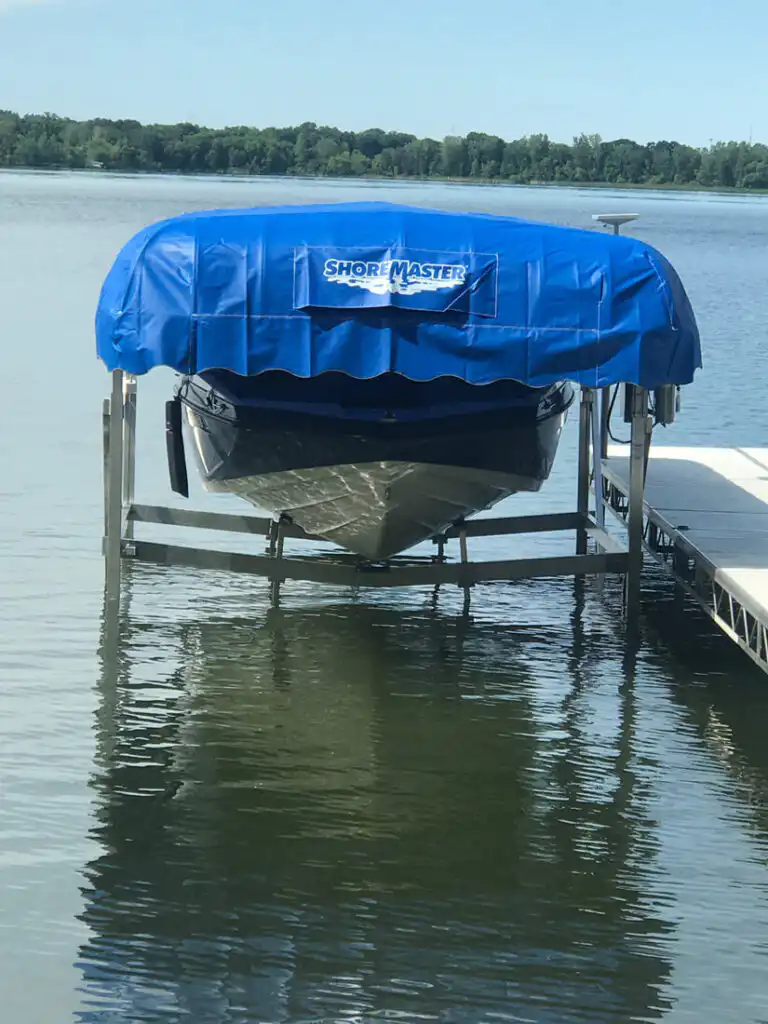

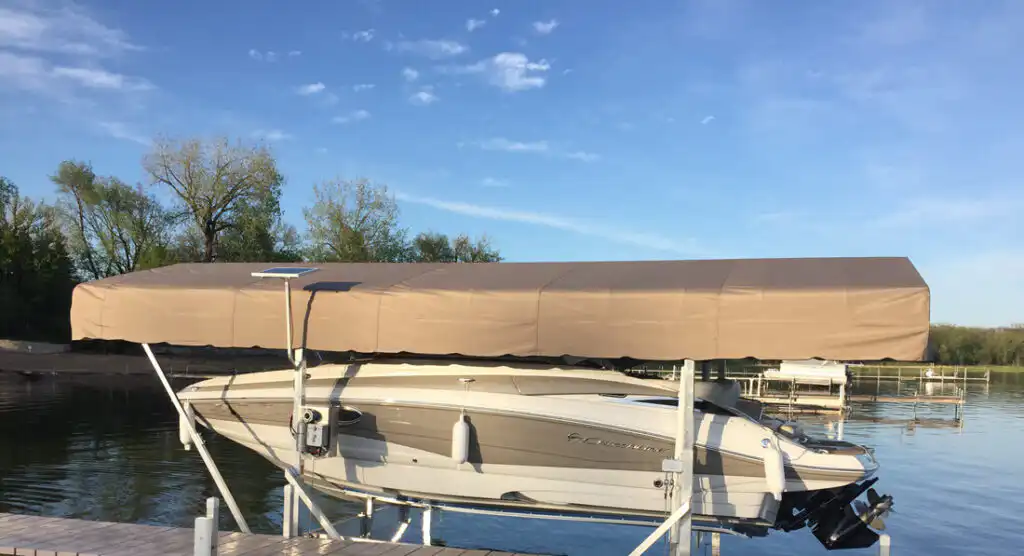

Completed Projects
