Hydrohoist Floating Boat Lifts
Product Features:
- All steel above the waterline
- Precision design & custom molded polyethylene tanks
- Full width 4″ frame channel with 3″ adjustable expansion channel
- Heavy-duty 1/4″ torsion bars
- 5″ high-density polypropylene square hole bushings
- Heavy-duty hull system
- Grade-8 pivot hardware
- Structural grade dock brackets with molded bumper guards
- Two-piece stainless/polyethylene pitman bushings
- Padded step pitmans
Specifications
| Model | Capacity | Min. Water Depth | Min. Slip Width |
|---|---|---|---|
| 5000UL | 5,000 lbs | 4 ft * | 8 ft |
| 2,267 kg | 1.22 m | 2.43 m | |
| 6600UL | 6,600 lbs | 5 ft ** | 8 ft |
| 2,993 kg | 1.52m | 2.43 m | |
| 66003TUL | 6,600 lbs | 4 ft * | 10 ft |
| 2,993 kg | 1.22 m | 3.04m | |
| 8800UL | 8,800 lbs | 5 ft ** | 8 ft |
| 3,991 kg | 1.52m | 2.43 m | |
| 10000UL2 | 10,000 lbs | 6.5 ft | 10 ft |
| 4,535 kg | 1.98 m | 3.04m | |
| 12000UL2 | 12,000 lbs | 6.5 ft | 10 ft |
| 5,443 kg | 1.98 m | 3.04m | |
| 14000UL2 | 14,000 | 6.5 ft | 10 ft |
| 6,350 kg | 1.98 m | 3.04m | |
| 16000UL2 Short | 16,000 | 6.5 ft | 12 ft |
| 7,257 kg | 1.98 m | 3.65m | |
| 16000UL2 Long | 16,000 | 6.5 ft | 12 ft |
| 7,257 kg | 1.98 m | 3.65m | |
| 18000UL2 | 18,000 | 6.5 ft | 12 ft |
| 8,164 kg | 1.98 m | 3.65m | |
| 22000UL2 | 22,000 | 7 ft | 13 ft |
| 9,979 kg | 2.13 m | 3.96m | |
| 24000 UL2 | 24,000 | 7 ft | 16 ft |
| 10,886 kg | 2.13 m | 4.87m | |
| 28000 UL2 | 28,000 | 7 ft | 16 ft |
| 12,700 kg | 2.13 m | 4.87m | |
| 32000 UL2 | 32,000 | 7 ft | 19 ft |
| 14,514 kg | 2.13 m | 5.79 m |
*30 inches plus hull draft
**38 inches plus hull draft

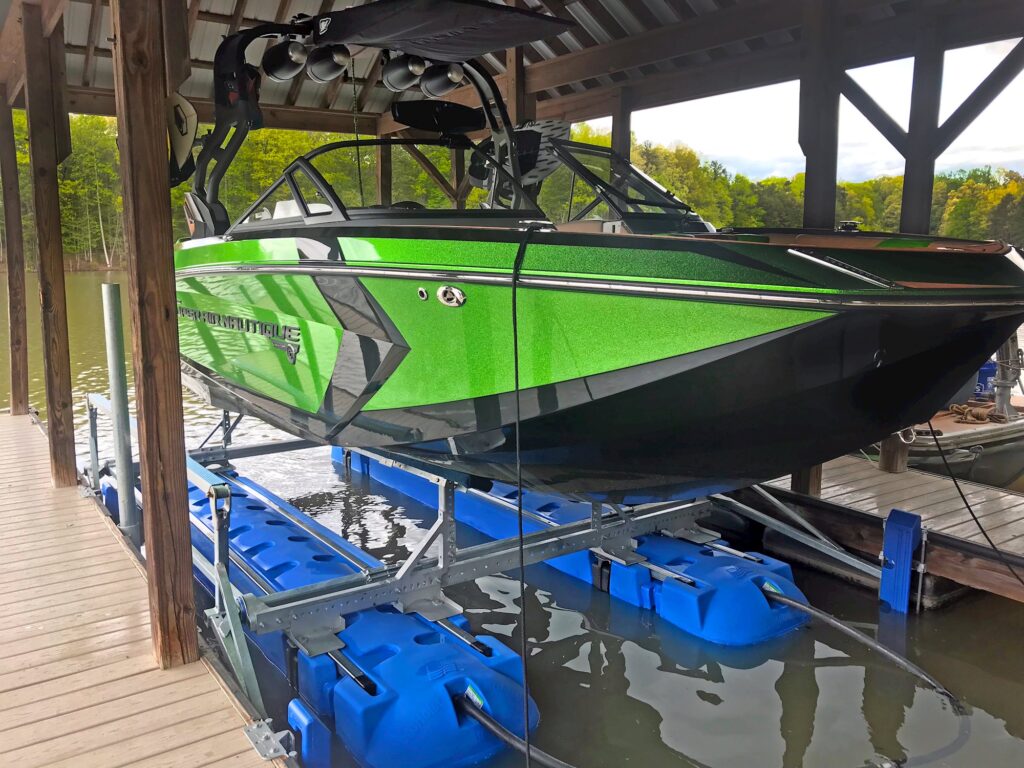

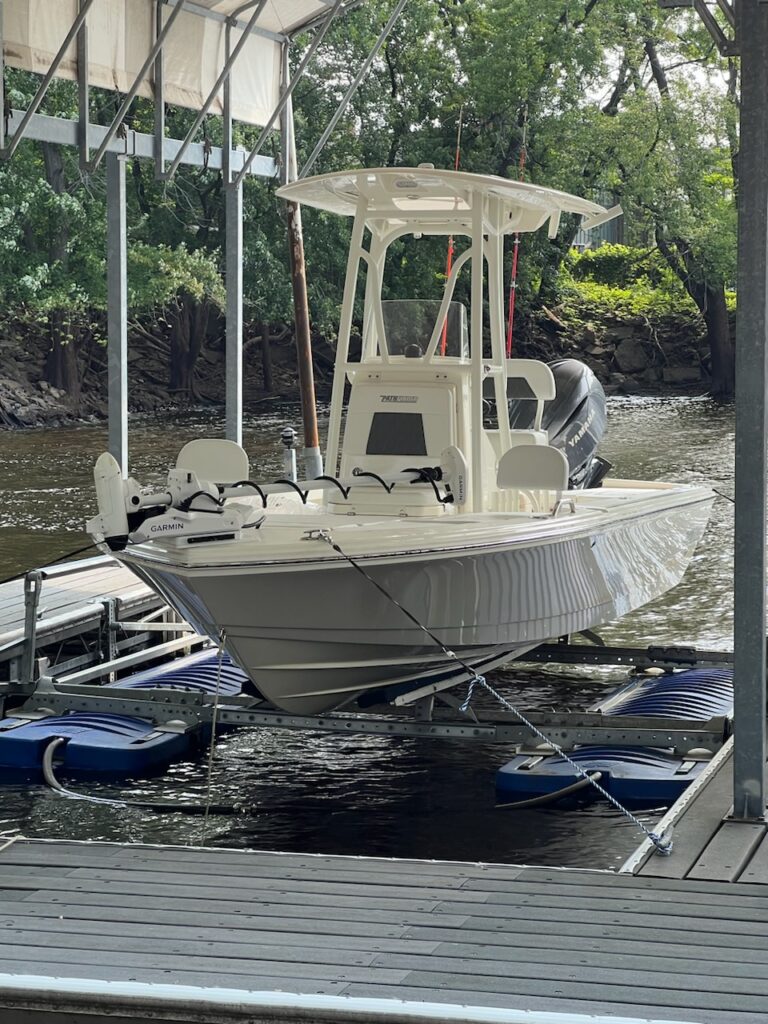

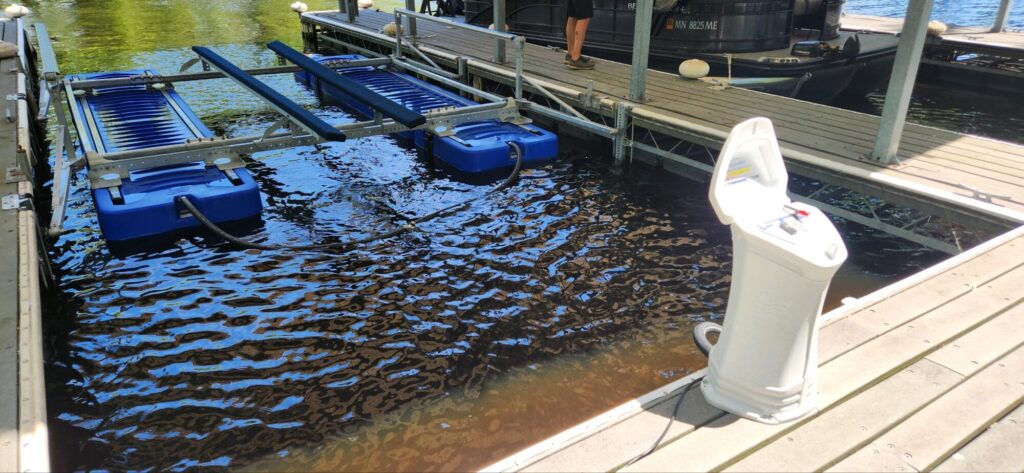

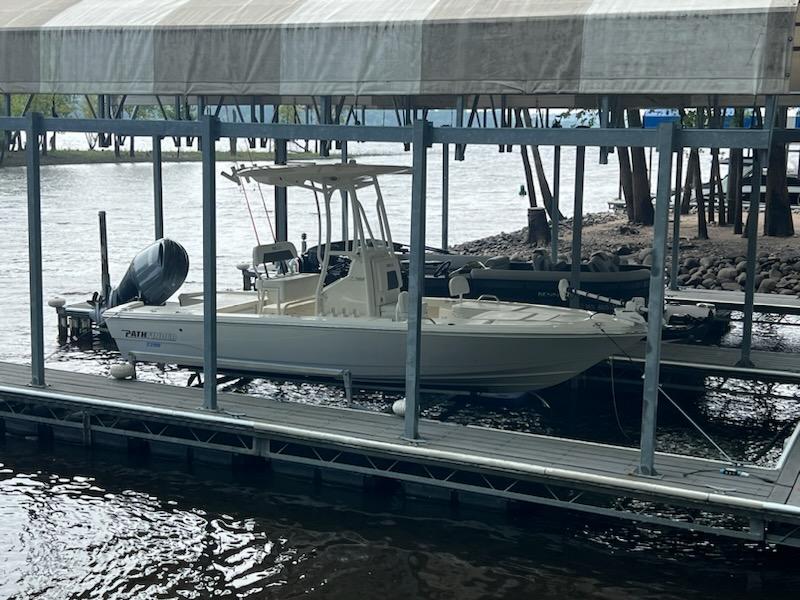

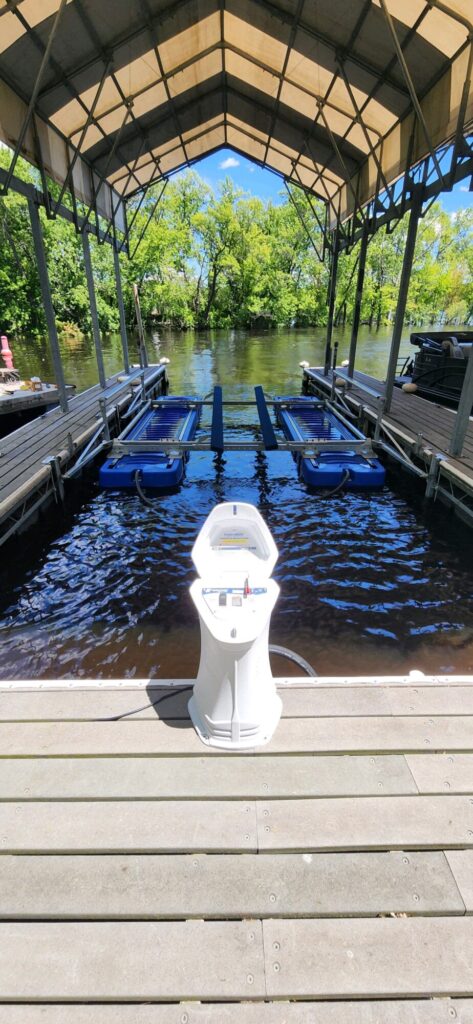

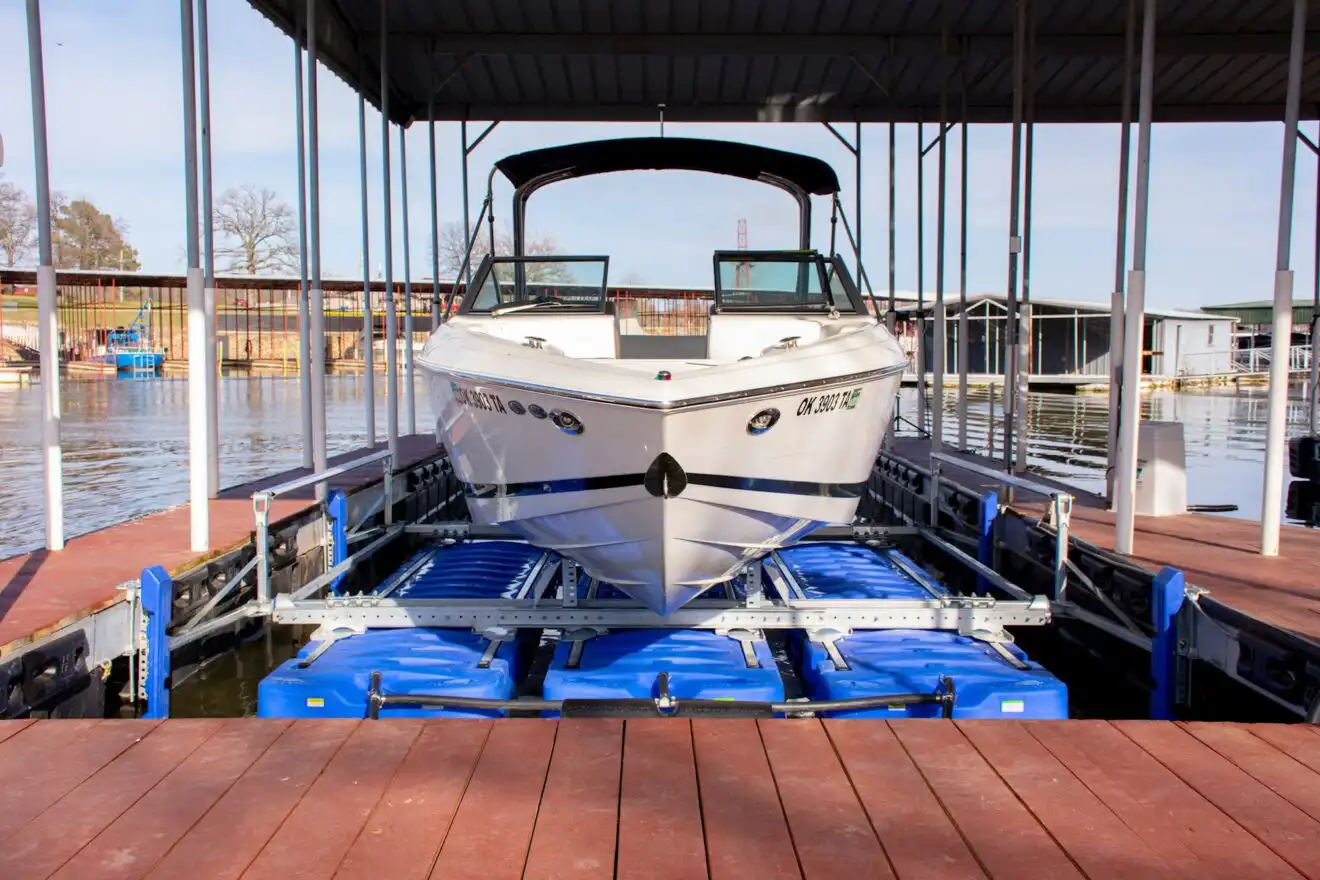

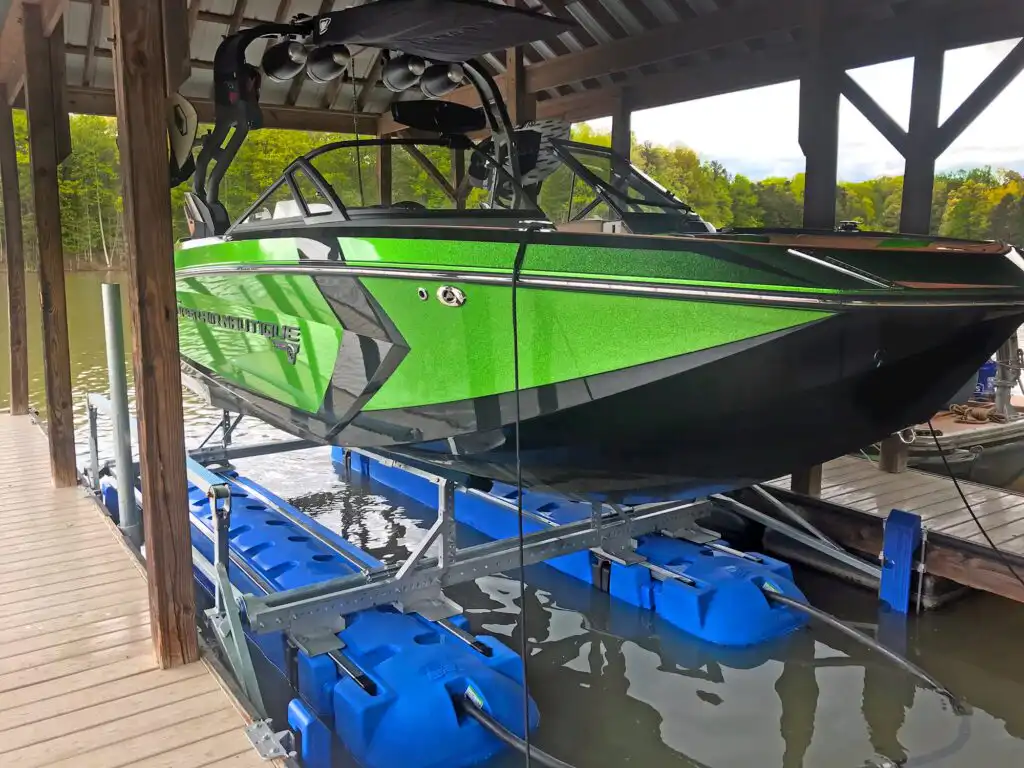

Completed Projects
